Oceantek ADCP Products —
River, Marine & Deep-
Ocean Current Profilers
Thirteen models across six series: 75–600 kHz acoustic Doppler current profilers, Doppler velocity logs, horizontal ADCPs, a self-contained hydrophone and a single-point current meter. Direct-reading or self-contained, 20 m to 6,000 m depth ratings — designed, fabricated and calibrated in our own facility.
units deployed worldwide
countries served
invention patents
quotation response
ISO 9001 certified manufacturing, in-house transducer fabrication & titanium machining
12-month technical support from application engineers, plus deployment planning
Third-party style verification — published comparison and consistency test reports
Ocean ADCP — Marine Current Profilers, 75–600 kHz
Five hardware platforms from 600kHz to 75kHz, with piston and phased-array transducer options. Each model is available in Direct-Reading (cabled real-time) and Self-Contained (battery autonomous) configurations — choose the instrument, then choose how you deploy it.

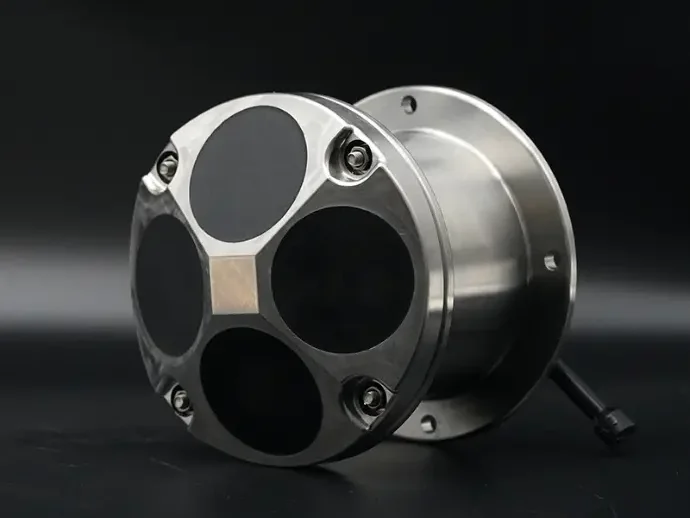

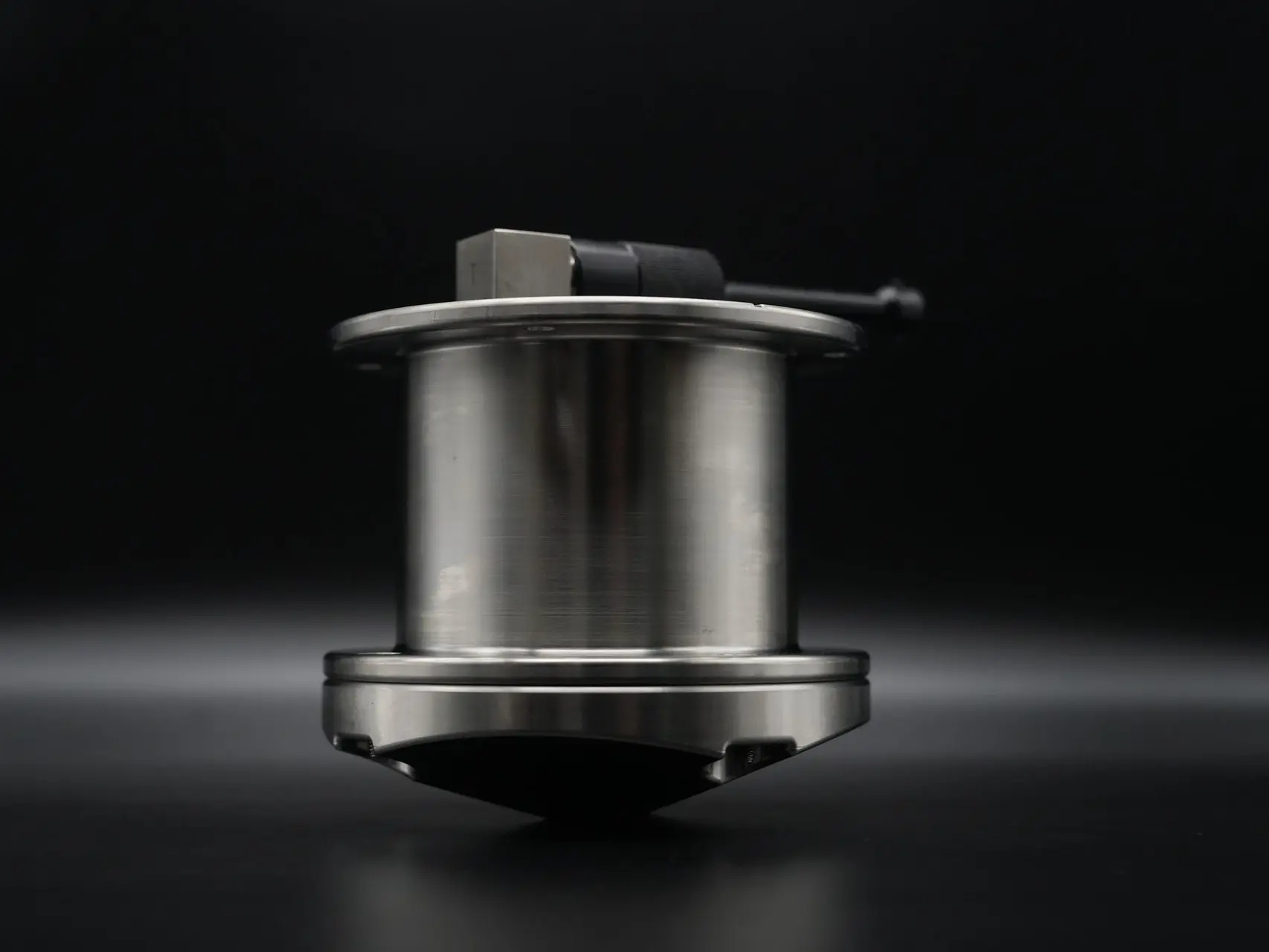

600 kHz ADCP for coastal & vessel surveys
Ocean-ADCP-600-FA4
3.5 kg compact profiler for moving-boat discharge surveys, mooring deployments and coastal monitoring where weight and handling matter.
Max Profile Range 70m
Bottom Track Range 120m
Velocity accuracy ±0.3%±3mm/s
Depth rating 1,000 / 3,000 / 6,000 m
Configurations Direct-reading/Self-contained

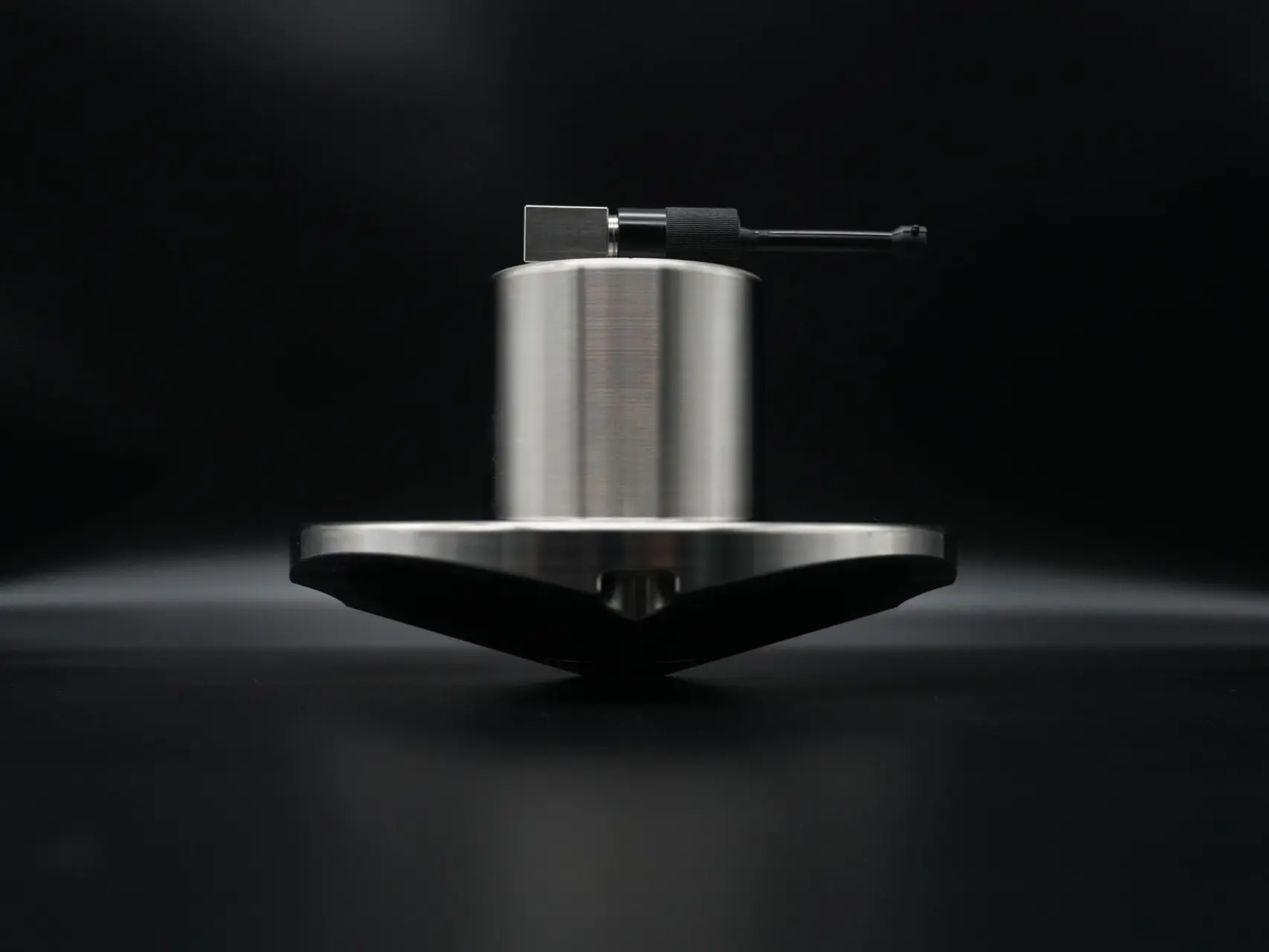

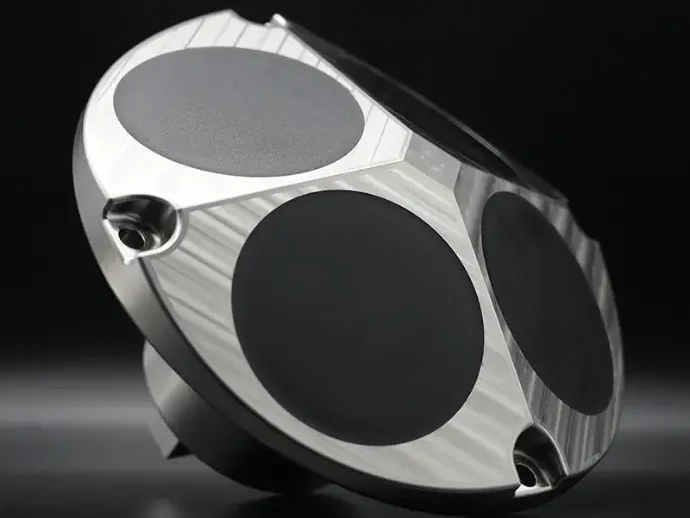

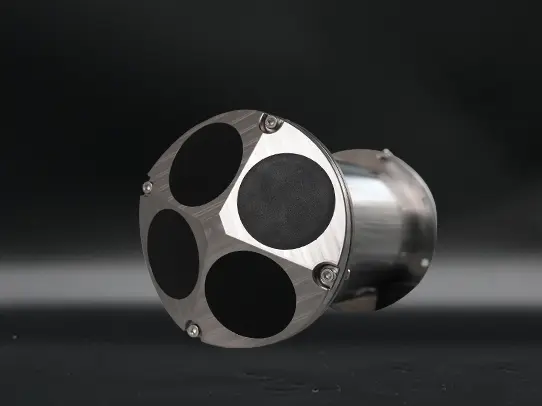

300 kHz ADCP for shelf & coastal profiling
Ocean-ADCP-300-FA4
The workhorse range for continental-shelf surveys and long-term moorings requiring 160 m of profile depth with moderate cell sizes.
Max Profile Range 160m
Bottom Track Range 220m
Velocity accuracy ±0.5%±5mm/s
Depth rating 1,000 / 3,000 / 6,000 m
Configurations Direct-reading/Self-contained

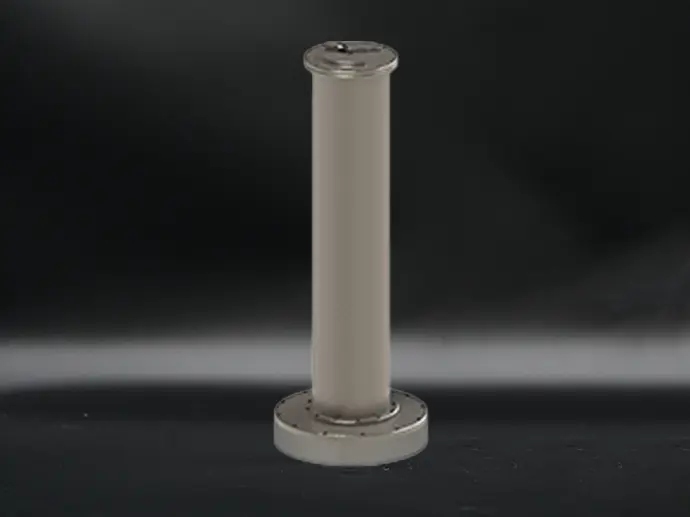

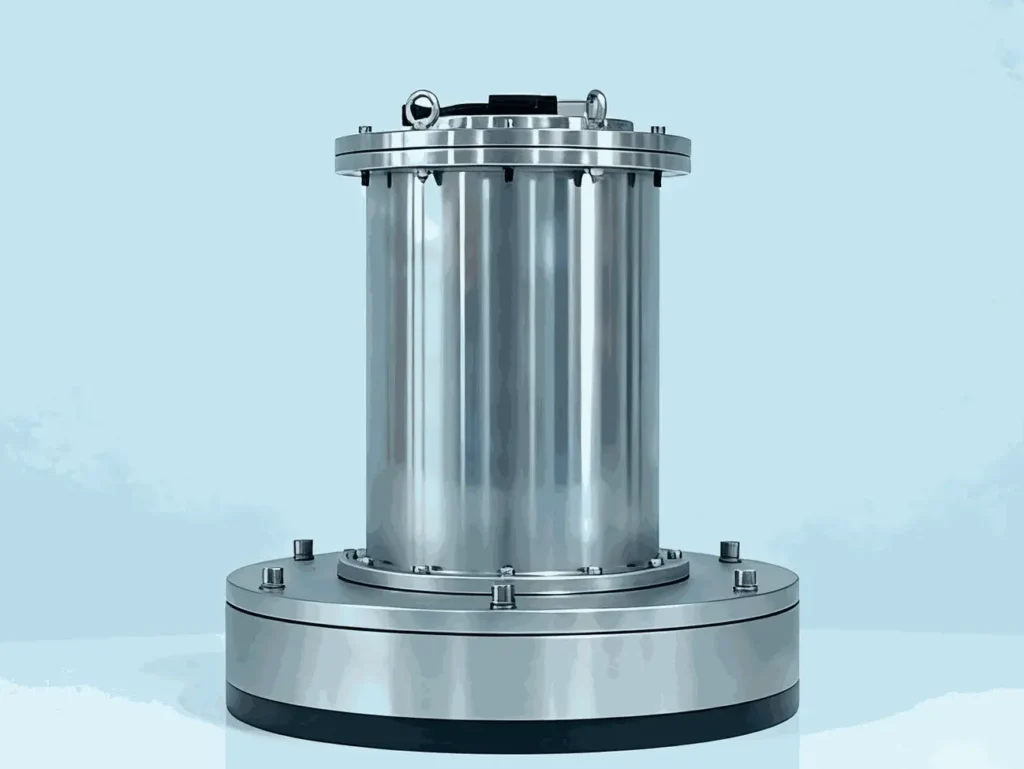

75 kHz ADCP for deep-ocean profiling to 650 m
Ocean-ADCP-75-PA4
Long-range phased-array profiler for deep water, basin-scale circulation studies and high-energy sites where the full water column must be resolved.
Max Profile Range 560m
Bottom Track Range 1000m
Velocity accuracy ±1.0%±5mm/s
Depth rating 1,500 / 3,000 / 6,000 m
Configurations Direct-reading/Self-contained
150 kHz ADCP for mid-water columns to 400 m
Ocean-ADCP-150-PA4
Balanced frequency for continental-shelf and upper-slope deployments where 400 m of range is needed with better resolution than a 75 kHz ADCP.
Max Profile Range 400m
Bottom Track Range 540m
Velocity accuracy ±1.0%±5mm/s
Depth rating 1,500 / 3,000 / 6,000 m
Configurations Direct-reading
600 kHz phased-array ADCP for shallow coastal work
Ocean-ADCP-600-PA5
Five-beam phased-array head for high-resolution profiling in shallow coastal and estuarine water, without protruding transducer faces to snag or foul.
Max Profile Range 70m
Bottom Track Range 120m
Velocity accuracy ±0.3%±3mm/s
Depth rating 1,000 / 3,000 / 6,000 m
Configurations Direct-reading
River ADCP — Discharge Measurement in Shallow, Turbulent Channels
River-type profilers are optimised for shallow water, complex flow and mobile operation: fast installation, strong anti-turbulence performance and stable discharge calculation for hydrographic gauging, urban river regulation and water resource monitoring, following ISO 748 discharge-measurement practice.
Muti-frequency river ADCP for small & shallow channels
River-ADCP-M9
Nine-beam muti-frequency head that keeps data valid in very shallow, high-turbulence flow — the recommended choice for streams under 10 m deep.
Max Profile Range 40m
Bottom Track Range 40m
Velocity accuracy ±0.25%±2mm/s
Depth rating 50 m
Configurations Direct-reading
600 kHz five-beam river ADCP for medium channels
River-ADCP-600-FA5
Five-beam geometry for medium-width rivers and canals, with a dedicated vertical beam for reliable depth in irregular beds.
Max Profile Range 65m
Bottom Track Range 110m
Velocity accuracy ±0.25%±2mm/s
Depth rating 50 m
Configurations Direct-reading
Horizontal ADCP — Permanent Side-Looking Discharge Stations
Horizontally mounted profilers for riverbanks, bridge piers and channel walls deliver continuous 24/7 discharge data without a boat or crew — the standard configuration for hydrological networks, flood warning and canal management.

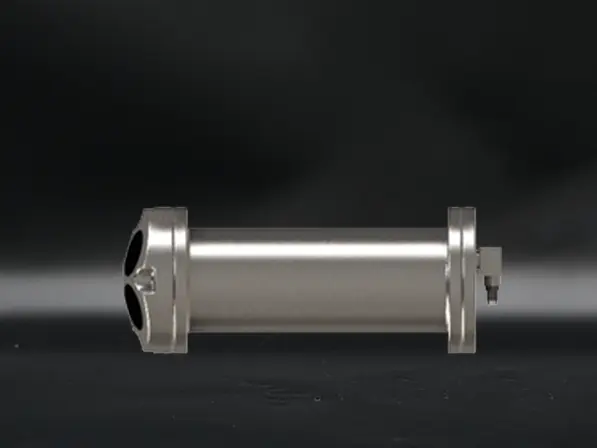

600 kHz horizontal ADCP for unattended river stations
HADCP-600-FA3
Fixed side-looking profiler covering a 90 m chord across the channel, designed for permanent installation with remote data retrieval.
Max Profile Range 90m
Duty cycle 24/7 continuous operation
Velocity accuracy ±0.3%±3mm/s
Depth rating 20 m
Configurations Direct-reading
Doppler Velocity Log — Navigation for AUV, ROV and USV
DVL sensors provide bottom-track velocity and dead-reckoning position for autonomous and remotely operated platforms. Three models cover 0.7 m to 220 m bottom-track depth, with piston and phased-array heads for different vehicle envelopes.
600 kHz DVL for shallow-water AUV navigation
DVL-600-FA4
4-beam bottom-track sensor for AUV, ROV and USV integration where altitude is typically under 110 m.
Bottom Track depth 0.7-110m
Velocity accuracy ±0.3%±3mm/s
Depth rating 1,000 / 3,000 / 6,000 m
Configurations Direct-reading
Integration RS-232 / RS-422 serial
300 kHz DVL for deep-water vehicle navigation
DVL-300-FA4
Longer bottom-track range for deep-diving vehicles and platforms operating far above the seabed.
Bottom Track 1-220m
Velocity accuracy ±0.5%±5mm/s
Depth rating 1,000 / 3,000 / 6,000 m
Configurations Direct-reading
Integration RS-232 / RS-422 serial
600 kHz phased-array DVL for flush-mounted integration
DVL-600-PA5
Compact bottom-track sensor for AUV, ROV and USV integration where altitude is typically under 110 m.
Bottom Track 0.7-110m
Velocity accuracy ±0.3%±3mm/s
Depth rating 1,000 / 3,000 / 6,000 m
Configurations Direct-reading
Integration RS-232 / RS-422 serial
Self-Contained Hydrophone — Long-Term Acoustic Monitoring
A low-noise, high-sensitivity underwater acoustic recorder with internal storage and battery, built for month-long unattended deployments in marine ambient-noise studies, acoustic research and aquatic biology monitoring.

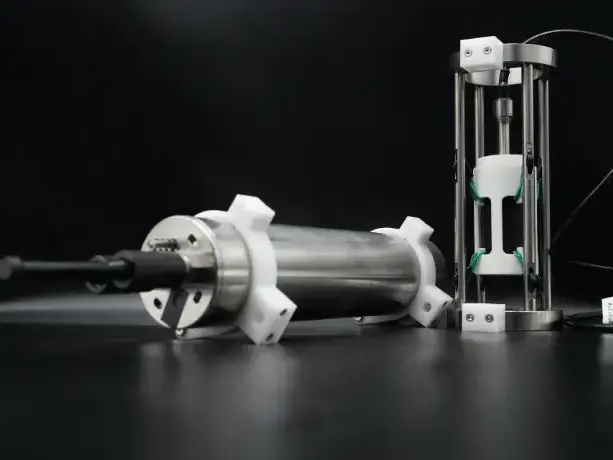

Self-contained hydrophone for month-long recordings
H3-OCEAN-6000
Autonomous acoustic recorder with on-board storage — no surface cable, no vessel time during deployment.
Operating frequency 10 Hz – 20 kHz
Continuous working time ≥ 1 month
Maximum gain −18 dB to 24 dB
Depth rating 1,000 / 3,000 / 6,000 m
Recording Self-contained, internal storage
Single-Point Current Meter — Compact Flow Speed & Direction
A cost-effective point-measurement sensor for flow speed and direction, with small dimensions, low power draw and simple maintenance — widely used in coastal engineering, offshore platform monitoring and shallow-water observation.

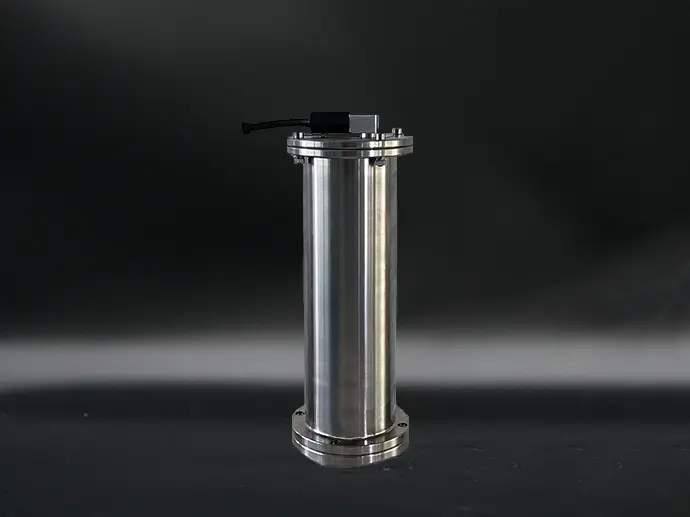

Single-point current meter for fixed stations
OCEAN-SPCM
Where a full profile is not required, a single-point meter delivers the velocity reading at far lower cost and power.
Current accuracy ±0.3% ± 3 mm/s
Velocity accuracy ±0.15 cm/s
Resolution 0.1 mm/s
Depth rating 1,000 / 3,000 / 6,000 m
Maintenance Compact, low-power, easy service
Test reports and deployments
Instrument selection is a risk decision. These are published, third-party-style comparisons and deployments — not marketing claims.
Comparative test
300 kHz ADCP vs Teledyne RDI WHS 300 kHz
Side-by-side velocity and range comparison under the same conditions, with raw data discussion.
ADCP equipment consistency test report
Unit-to-unit consistency across production, showing what to expect between deliveries.
DVL-600K Qiandao Lake test
Bottom-track performance verification for the 600 kHz Doppler velocity log.
Deployments
case studies — 21 rivers, 12 coastal & offshore sites
From Yangtze, Amazon and Mississippi discharge surveys to North Sea offshore wind and ports.
Cost transparency
ADCP price: 7 hidden cost drivers
What actually determines total cost of ownership — beyond the purchase price.
Manufacturing
ISO 9001 in-house production
Transducer fabrication, titanium machining and calibration in our own facility; 30+ invention patents.
