H3-OCEAN

Name: H3-OCEAN-6000
Brand: Oceantek
Availability: InStock

Low-noise high-sensitivity hydrophone with built-in storage.

Supports unattended long-term underwater acoustic monitoring and research.

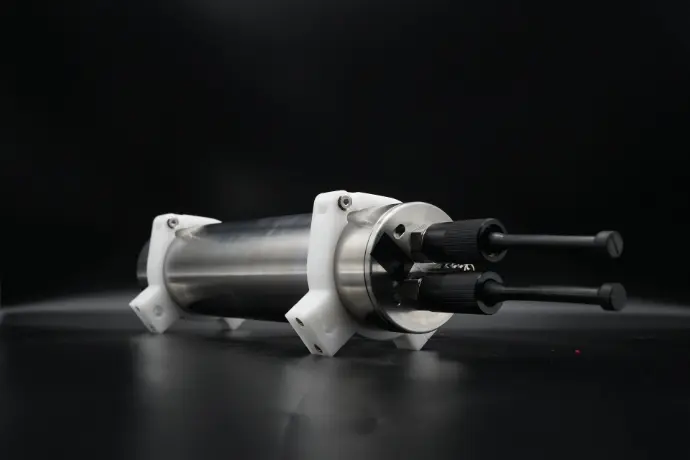

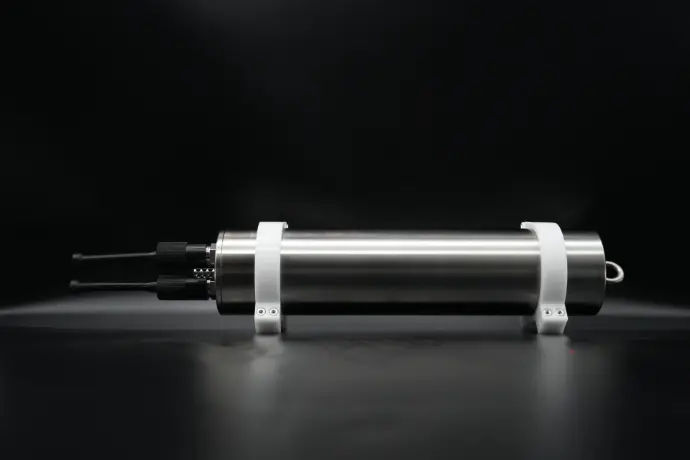

Key Features: H3-OCEAN-6000 Self-contained Hydrophone

Ultra-Long Autonomous Monitoring
Self-contained design with built-in high-capacity battery enables continuous underwater recording for over 1 month, and even supports up to 370 days of scheduled interval sampling for unattended deep-sea deployments.
High-Sensitivity Low-Noise Acoustic Detection
Optimized for capturing faint underwater sounds, featuring ultra-high sensitivity and low self-noise performance, making it ideal for marine mammal monitoring, seismic studies, and ambient noise research.
Wide Frequency & Flexible Sampling Options
Covers a broad frequency range (10 Hz–20 kHz) with multiple adjustable sampling rates, allowing users to tailor data collection to specific research or monitoring needs.
High-Resolution & Large Dynamic Range Recording
24-bit quantization paired with a wide dynamic range ensures clear, detailed capture of both faint and loud acoustic events without signal distortion.
Deep-Sea Ready & Compact Design
Rated for 6000 m depth, with a rugged, compact form factor that is easy to deploy and retrieve, suitable for moorings, seabed stations, and long-term ocean observatories.
Large On-Board Storage & Fast Data Access
Standard 512 GB storage (up to 1 TB optional) supports extended recording missions, with high-speed data download capability for efficient post-mission analysis.
Low Power Consumption for Extended Field Life
Ultra-low continuous power draw maximizes deployment duration, making it ideal for remote, long-term ocean monitoring projects.
High-Reliability for Marine Research & Applications
Built to withstand harsh deep-sea conditions, delivering stable and consistent acoustic data for marine biology, oceanography, environmental monitoring, and underwater noise studies.

Overview

Specifications

Technical Specification	H3-OCEAN-6000 Self-contained Hydrophone
Model	H3-OCEAN
Product Type	Self-contained Hydrophone
Pressure Rating	1000m, 3000m, 6000m (Max rating: 6000m)
Operating Frequency	10Hz - 20kHz
Operation Mode	Self-contained
Continuous Working Time	≥ 1 month
Hydrophone Sensitivity	Better than -166dB re 1 µPa (including preamplifier module)
Sampling Rate	8kHz, 16kHz, 32kHz, 64kHz, 128kHz (adjustable)
Interval Sampling	Supports up to 370 days of monitoring
Sampling Quantization Precision	24-bit quantization
Dynamic Range	> 100dB
Minimum Measured Noise Spectral Level	< 40dB @ 1kHz
Maximum Gain	-18dB to 24dB
Power Supply	7.2V, 480Wh
Power Consumption	Continuous operating power consumption: better than 500mW
Data Download Speed	≥ 5 MB/s
Internal Storage Capacity	512GB nominal (optional 1TB)
Weight (with battery)	< 4kg
Dimensions	Hydrophone volume: Φ40mm (diameter) × 105mm (length) Main body volume: Φ74mm (diameter) × 315mm (length)
