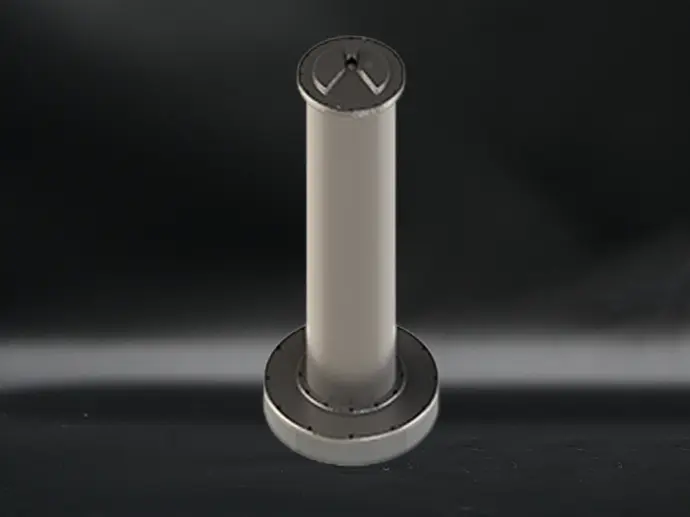

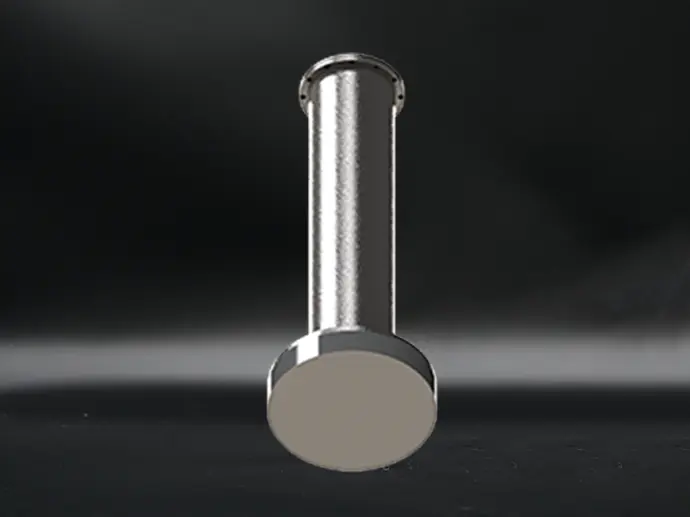

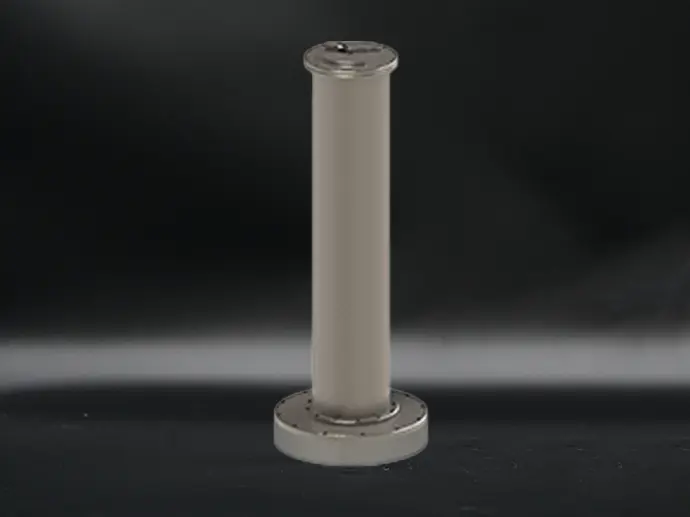

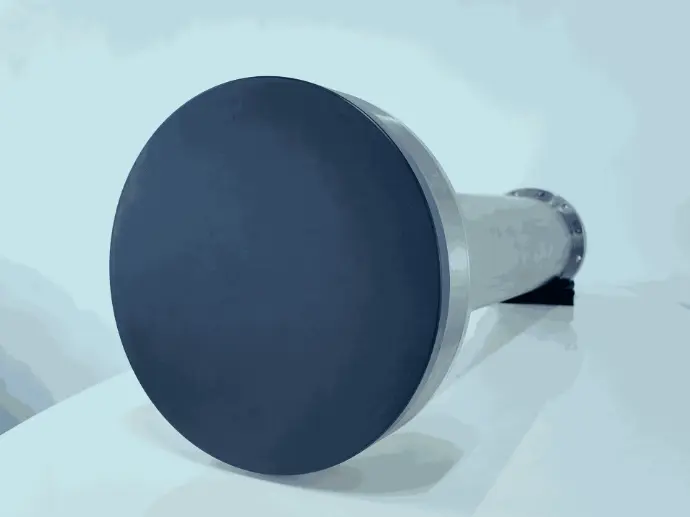

ADCP-75-SC-PA4
Designed specifically for moored current profile measurement applications
Key Features:Self-contained ADCP 75k
Battery-Powered Unattended Deep-Sea Operation
Built-in alkaline battery enables long-term, cable-free deployment for fixed-point deep-water monitoring. No external power required, ideal for remote offshore and open-ocean sites.
Ultra-Long Deep-Sea Profiling Range
Designed for deep-ocean applications, offering a maximum profiling range of 650 m (narrowband) / 550 m (broadband), with bottom tracking capability up to 1000 m for reliable data in deep water.
Reliable High-Precision Flow Measurement
Delivers consistent velocity profiling with ±1.0% ±5 mm/s accuracy and 1 mm/s resolution, paired with 0–360° directional sensing at ±2° precision, suitable for demanding oceanographic research and engineering monitoring.
Customizable Deep-Water Profiling Resolution
Flexible cell layer thickness from 4 m to 32 m, combined with up to 255 measurement layers, allowing users to balance range and resolution for deep-ocean current studies.
Rugged Titanium Alloy Deep-Sea Housing
Built with corrosion-resistant titanium alloy, available in 1500 m, 3000 m, and 6000 m pressure-rated configurations, ensuring durability in high-pressure deep-sea environments.
Integrated Environmental & Attitude Sensors
Equipped with precision temperature, pressure, and attitude (roll/pitch/heading) sensors to maintain data accuracy under harsh, variable marine conditions.
Large On-Board Storage & Connectivity
64 GB Micro SD memory supports long-duration data logging, with RS-232/RS-422 interfaces for reliable data retrieval and integration with field systems.
Optimized Power Efficiency for Long Deployments
Average power consumption ≤ 20 W maximizes battery life, enabling extended unattended missions in remote offshore and deep-sea locations.
Specifications
| Technical Specification | 75kHz Self-contained ADCP |
|---|---|
| Operating Frequency | 75kHz |
| Operation Mode | Self-contained |
| Battery Type | Alkaline Battery |
| Underwater Profile Range (Broadband / Narrowband) | 550m / 650m |
| Bottom Track Range | 1000m |
| Current Measurement Accuracy | ±1.0% ± 5mm/s |
| Velocity Resolution | 1mm/s |
| Velocity Range | ±5.0 m/s (Default); ±10.0 m/s (Max) |
| Flow Direction Range | 0~360° |
| Flow Direction Accuracy | ±2° |
| Number of Cells | 1 - 255 |
| Height Measurement Resolution | 1mm |
| Height Measurement Accuracy | ±1% ± 0.5cm |
| Data Refresh Rate | 1Hz (No Bottom Track); 0.5Hz (With Bottom Track) |
| Cell Size | 4m - 32m |
| Beam Angle | 30° |
| Beam Width | 3.5° |
| Number of Beams | 4 Beams Janus |
| Internal Storage | 64 GB Micro SD Card |
| Communication Interface | RS-232 or RS-422 |
| Temperature Sensor | Range: -5°C to 45°C; Accuracy: ±0.1°C |
| Pressure Sensor | Range: According to depth rating; Accuracy: ±0.25% |
| Attitude Compass Sensor | Range: Roll ±85° | Pitch ±85° | Heading 0-360°; Accuracy (RMS): Roll 0.2° | Pitch 0.2° | Heading 0.8°; Resolution: 0.1° |
| Average Power Consumption | ≤20W |
| Operating Temperature | -5°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Power Supply Interface | 20V - 50V, 5A |
| Housing Material | Titanium Alloy |
| Weight (in Air / in Water) | 86 kg / 63 kg (1500m) | 104 kg / 83 kg (3000m) | 115 kg / 95 kg (6000m) |
| Dimensions (Excluding Top Connector) | Φ350 × 933 mm (1500m) | Φ350 × 953 mm (3000m) | Φ350 × 973 mm (6000m) |
| Available Options | - |
Applications
Ocean Observation
Oceanographic Research Vessel
AUV/ROV
Deepwater Oil and Gas
Renewable Energy
Cable and pipeline laying
Why Choose Us?
High Reliability
Continuous operation: ≥100 days
Small Size
Far smaller size than global counterparts with equal performance
Cost-Effective
Stable performance, affordable and reliable
ADCP Manufacturer
Faster response & shorter delivery time
One Year Warranty
Extended warranty available. Contact us for details.
After-sales Service
After-sales support via email, telephone,social media such as WhatsAPP
View Our Self-Contained ADCP Series
Oceantek offers high-accuracy self-contained ADCP in multiple frequencies including 600kHz, 300kHz and 75kHz, applicable to nearshore shallow water long-term fixed monitoring,coastal waters and unattended offshore for long term monitoring.
ADCP-75k: range up to 1000m,specialized for deep water projects
