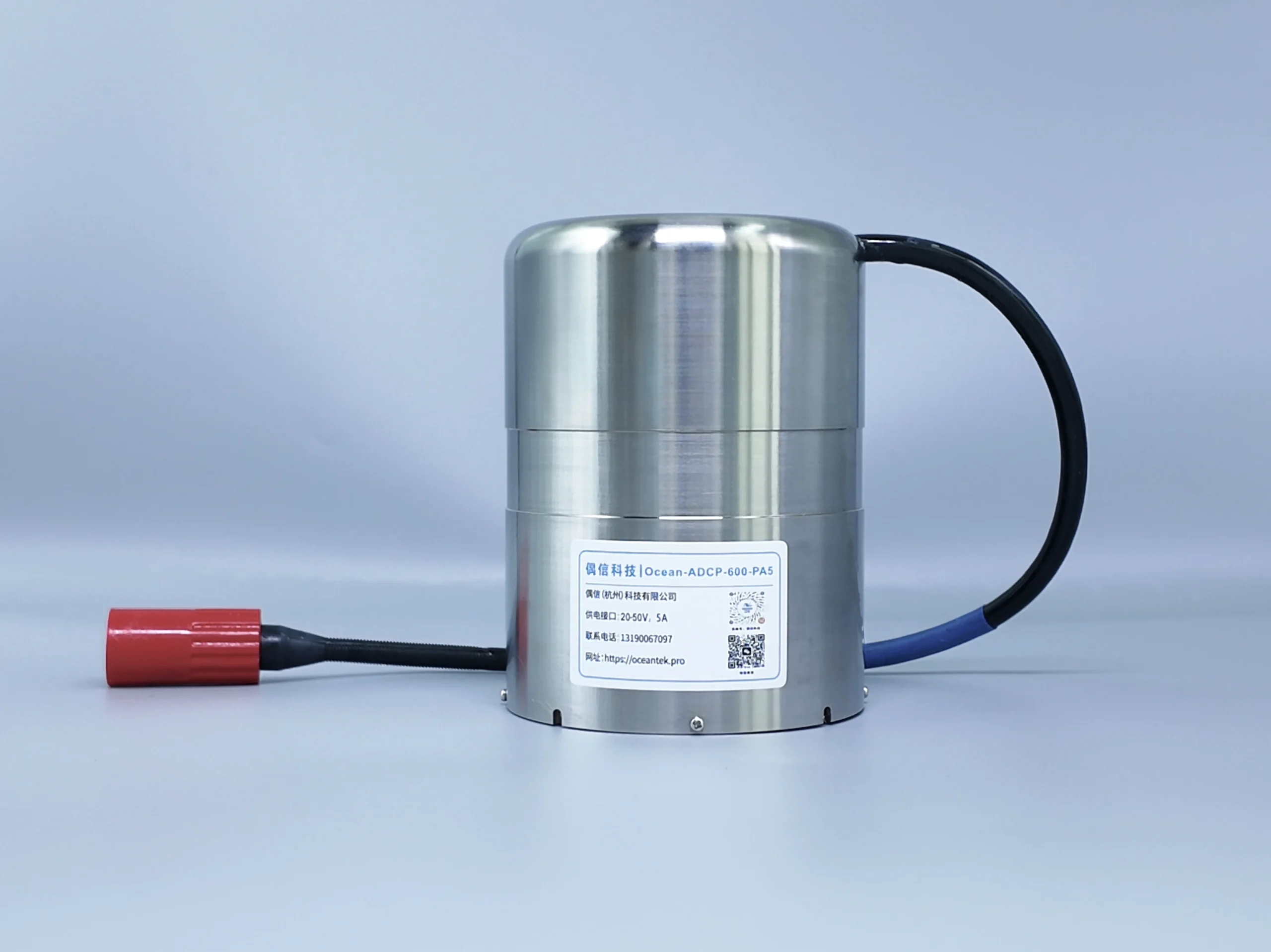

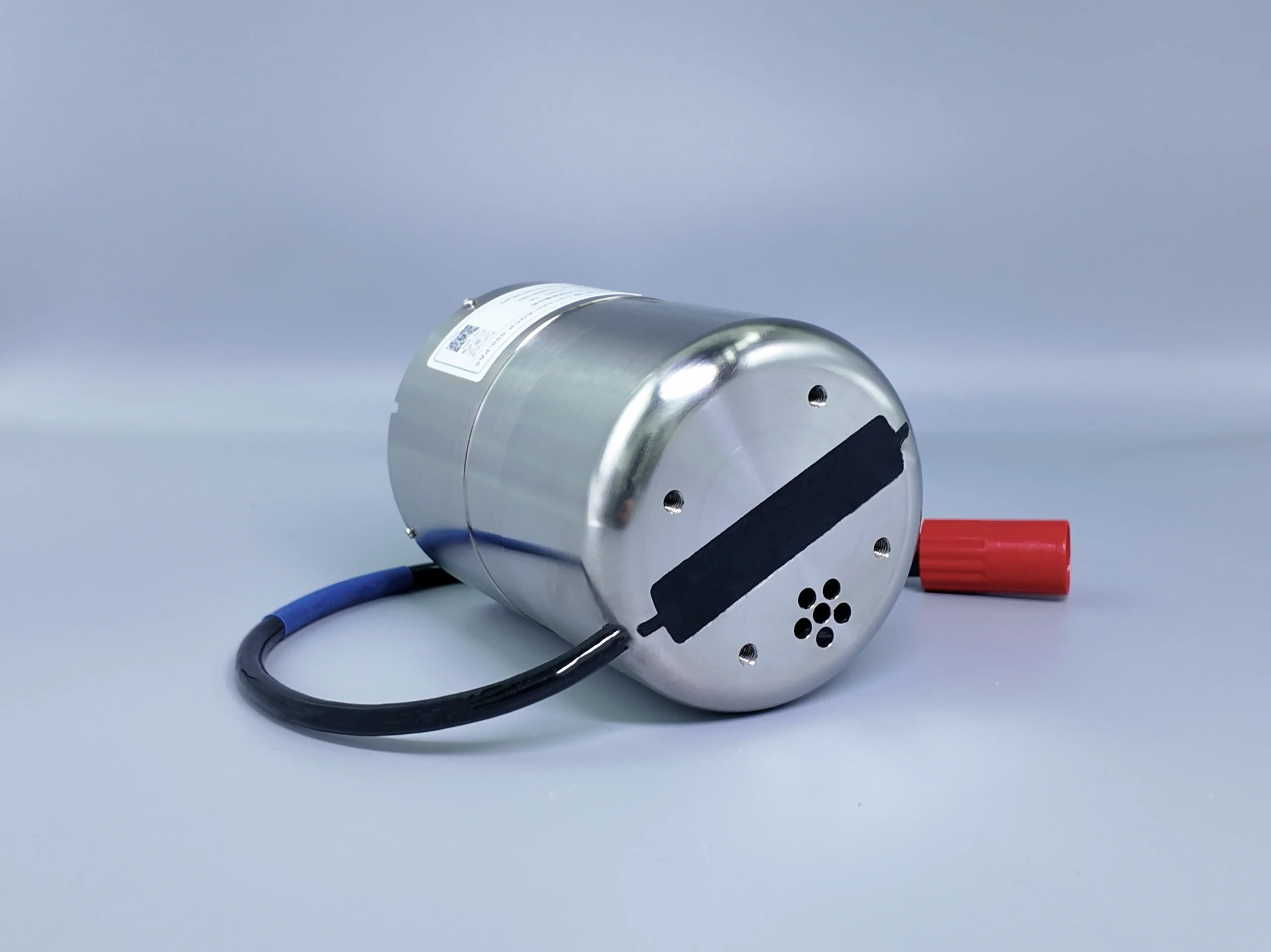

Ocean-ADCP-600-PA5
Featuring integrated flat plane phased array transducer and dedicated vertical center beam, this 600kHz ADCP delivers high-resolution full water-column current & wave profiling for nearshore port, navigation channels and medium offshore waters.
Key Features: 600kHz Phased Array ADCP

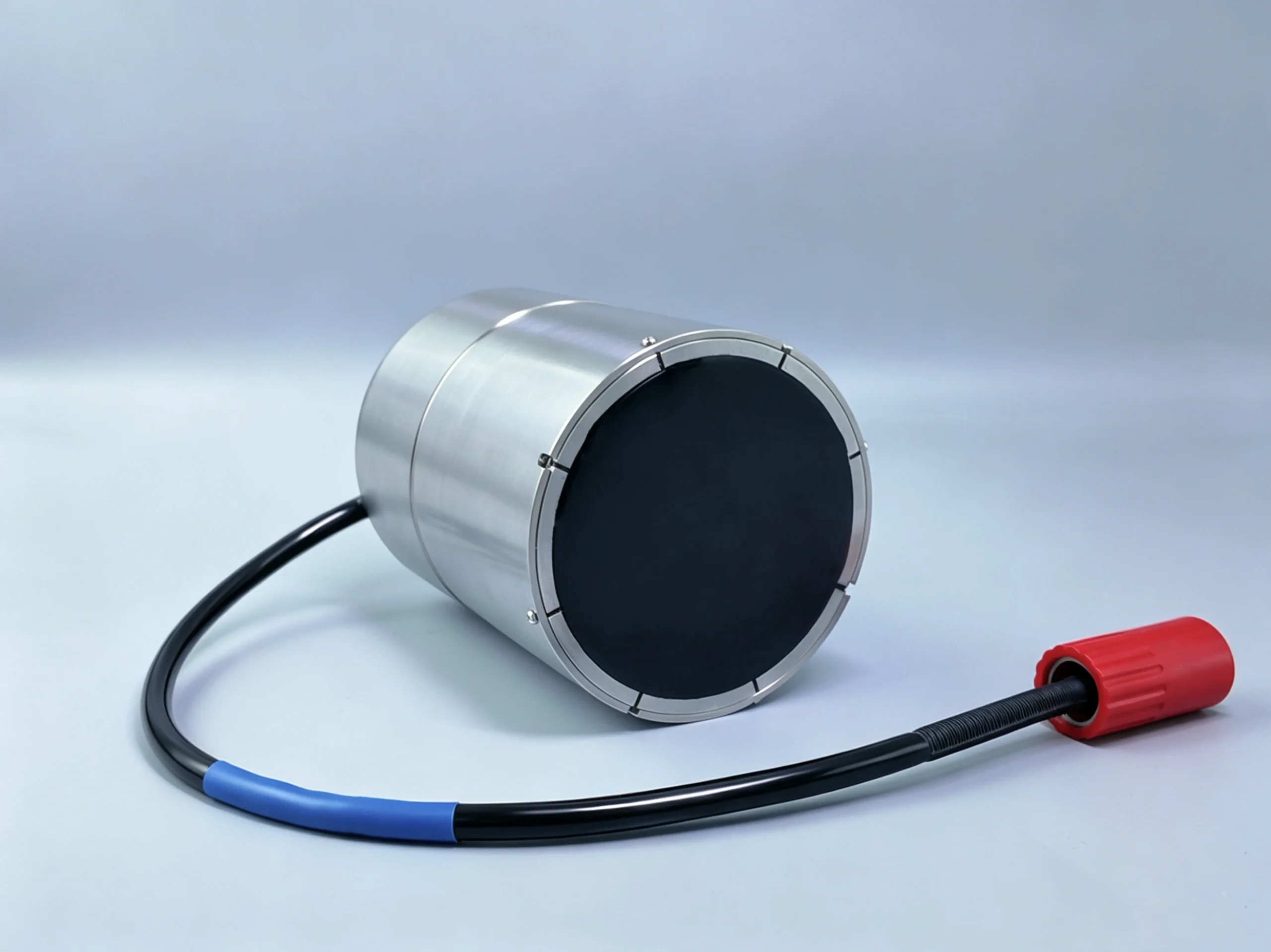

- Planar Phased Array Acoustic TransducerCutting-edge planar phased array hardware optimizes acoustic beam performance, delivering steady velocity profiling under turbid nearshore waters and uneven seabed terrain compared with conventional beam layouts.
- High‑precision Multi‑dimensional Flow ProfilingReliable measurement of flow speed and flow direction across the full azimuth range, with fine resolution to capture subtle current fluctuations for accurate hydrological data calculation. Adjustable bin thickness lets users customize vertical profiling granularity for project requirements.
- Two Tunable Data Refresh ModesSeparate output rates for scenarios with and without bottom tracking, balancing real‑time responsiveness and power efficiency during dynamic offshore monitoring assignments.
- Dual Capability: Water Column Profiling & Bottom TrackingPerforms layered current profiling in the water column alongside dependable seabed tracking, supporting discharge computation, underwater positioning and seabed reference calibration in shallow coastal waters.
- Ultra‑light Compact Titanium Alloy EnclosureHigh‑strength corrosion‑resistant titanium housing offers 3 depth rating selections. The small footprint and low mass simplify installation on compact unmanned surface vessels, mini ROVs and constrained mounting locations.
- Complete Built‑in Sensor Suite for Environmental CompensationIntegrated temperature, pressure, roll‑pitch attitude and heading sensors correct measurement drift caused by platform tilt and shifting underwater ambient conditions to lock in data consistency.
- Flexible Connectivity & Local Mission ArchivingStandard industrial serial ports enable straightforward integration with third‑party onboard control hardware; ample onboard local storage archives full datasets for offline post‑mission analysis.
- Low Power Draw & Expandable Hardware OptionsPower‑saving operation adapts to battery‑powered mobile monitoring platforms. Optional accessories including external battery packs and power adapters broaden deployment flexibility for remote field sites.
Overview
Specifications
| Category | Technical Specification | Parameter |
|---|---|---|
| Velocity & Direction Measurement | Operation Mode | Direct Reading |
| Underwater Profile Range (Broadband / Narrowband) | 55m / 70m | |
| Current Measurement Accuracy | ±0.3% ± 3mm/s | |
| Velocity Resolution | 1mm/s | |
| Velocity Range | ±5.0 m/s (Default); ±20.0 m/s (Max) | |
| Flow Direction Range | 0-360° | |
| Flow Direction Accuracy | ±2° | |
| Number of Cells | 1 - 255 | |
| Cell Size | 0.5m - 4m | |
| Data Output Rate | 2Hz (No Bottom Track); 1Hz (With Bottom Track) | |
| Bottom Tracking | Depth Range | 0.7 - 110m (Height above seabed) |
| Measurement Accuracy | ±0.3% ± 3mm/s | |
| Resolution | 1mm/s | |
| Transducer & Hardware | Operating Frequency | 600kHz |
| Configuration | Planar Phased Array | |
| Beam Angle | 30° | |
| Beam Width | 3.5° | |
| Internal Storage | 64 GB Micro SD Card | |
| Depth Measurement | Altitude Measurement Resolution | 1mm/s |
| Altitude Measurement Accuracy | ±1% ± 0.5cm | |
| Communication | Communication Interface | RS-232 or RS-422 |
| Temperature Sensor | Range: -5°C to 45°C; Accuracy: ±0.1°C | |
| Standard Sensors | Pressure Sensor | Range: According to depth rating; Accuracy: ±0.25% |
| Attitude Sensor (Roll & Pitch) | Range: ±85°; RMS Accuracy: ±0.2°; Resolution: 0.1° | |
| Heading Compass Sensor | Range: 0-360°; RMS Accuracy: ±0.8°; Resolution: 0.1° | |
| Power Supply | Power Supply Interface | 20-50V |
| Average Power Consumption | ≤5W | |
| Structure | Housing Material | Titanium Alloy |
| Environment | Operating Temperature | -5°C - 45°C |
| Storage Temperature | -40°C - 70°C | |
| Pressure Depth Rating | 1000m / 3000m / 6000m | |
| Physical Properties | Weight (in Air) | ≤1.8kg |
| Dimensions | Φ92 × 112mm | |
| Optional | Available Options | External Battery, Bottom Track Function, AC / DC Power Converter |
Applications
Ocean Observation
Oceanographic Research Vessel
AUV/ROV
Deepwater Oil and Gas
Renewable Energy
Cable and pipeline laying
Why Choose Us
High Reliability
Continuous operation: ≥100 days
Small Size
Far smaller size than global counterparts with equal performance
Cost-Effective
Stable performance, affordable and reliable
Manufacturer
Faster response & shorter delivery time
One Year Warranty
Extended warranty available. Contact us for details.
After-sales Service
After-sales support via email, telephone,social media such as WhatsAPP
View Our Direct-Reading ADCP Series
Oceantek offers high-accuracy direct-reading ADCP in multiple frequencies including 600kHz, 300kHz and 75kHz, applicable to shallow water flow measurement, coastal observation and marine research for real-time monitoring.
ADCP-600k: range up to 120m,perfact for shallow zone flow profiling
ADCP-300k: range up to 220m,specially designed for nearshore waters
ADCP-75k: range up to 1000m,specialized for deep water projects
