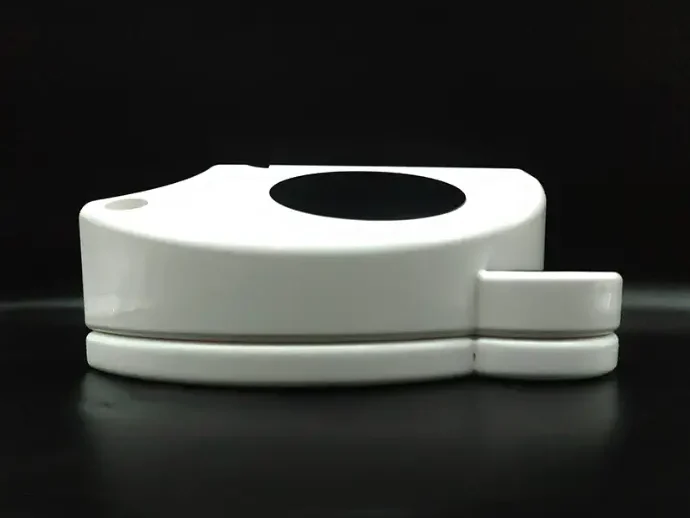

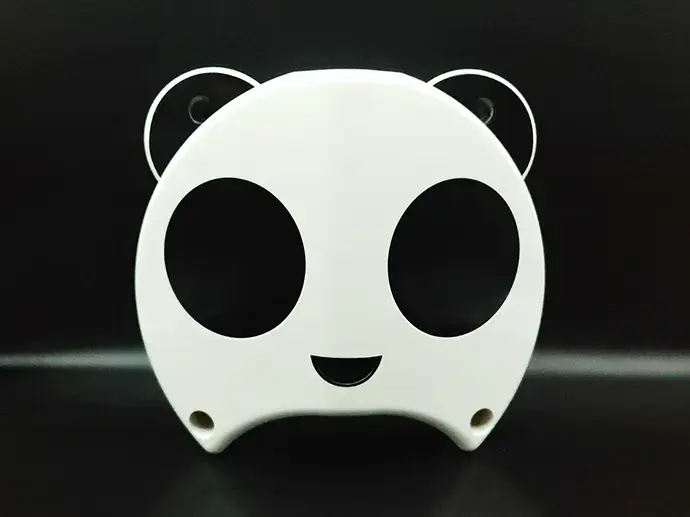

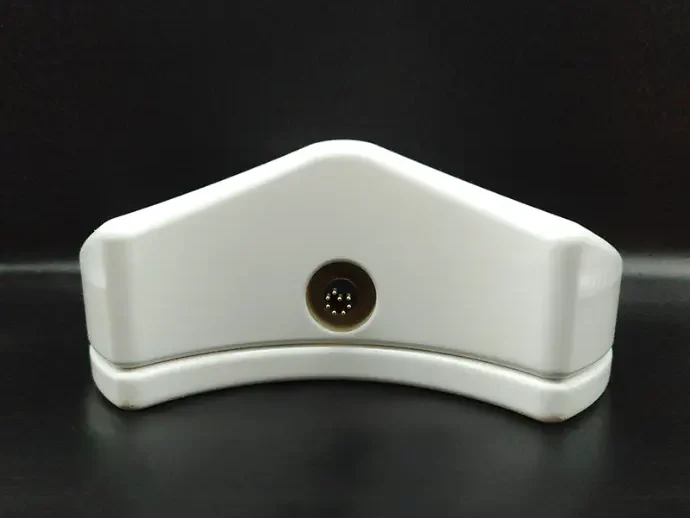

HADCP-600

Name: HADCP-600
Brand: Oceantek
Availability: InStock

HADCP is specially designed for real-time horizontal flow profile measurement in rivers

The standard configuration of the product uses POM material

Featuring smaller size, lighter weight and higher reliability.

Key Features: 600kHz Horizontal ADCP

Horizontal Side-Looking Design for Continuous River Monitoring
Purpose-built for fixed side-mounted installation on riverbanks or bridge piers, enabling continuous cross-section discharge monitoring without vessel deployment.
Extended Cross-Section Profiling Range
Delivers up to 90 m horizontal profiling coverage, ideal for medium and large rivers, canals, and open channels, providing full cross-section velocity and discharge data.
High-Precision Flow & Direction Sensing
Offers accurate velocity measurements with ±0.3% ±3 mm/s precision and 1 mm/s resolution, paired with 0–360° directional sensing at ±2° accuracy for reliable flow profile data.
Optimized Beam Configuration for River Conditions
Equipped with 2 horizontal beams + 1 vertical beam design, ensuring stable data collection even in shallow, sediment-laden or turbulent river environments.
Flexible & Customizable Profiling Resolution
Adjustable cell layer thickness (0.5–4 m) with up to 255 measurement layers, allowing users to tailor vertical resolution to their specific river monitoring needs.
Lightweight, Corrosion-Resistant Construction
Rugged POM housing (20 m pressure rating) ensures durability in freshwater environments, with low weight for easy installation on riverbanks and piers.
Integrated Environmental & Attitude Sensors
Precision temperature, pressure, and attitude (roll/pitch/heading) sensors maintain measurement accuracy under varying environmental conditions.
Large On-Board Storage & Connectivity
64 GB Micro SD memory supports long-duration data logging, with RS-232/RS-422 interfaces for reliable data retrieval and integration with hydrological systems.

Overview

Specifications

Technical Specification	Horizontal ADCP (600kHz, Pressure Rating: 20m)
Operating Frequency	600kHz
Operation Mode	Direct Reading
Battery Capacity	-
Maximum Profile Range	90m
Bottom Track Range	-
Current Measurement Accuracy	±0.3% ± 3mm/s
Velocity Resolution	1mm/s
Velocity Range	±5.0 m/s (Default); ±20.0 m/s (Max)
Flow Direction Range	0~360°
Flow Direction Accuracy	±2°
Number of Cells	1 - 255
Data Refresh Rate	2Hz
Cell Size	0.5 - 4m
Number of Beams	2 Horizontal Beams, 1 Vertical Beam
Beam Angle	20°
Horizontal Beam Width	1.4°
Vertical Beam Width	5°
Internal Storage	64 GB Micro SD Card
Communication Interface	RS-232 or RS-422
Temperature Sensor	Range: -5°C to 45°C; Accuracy: ±0.1°C
Pressure Sensor	Range: According to depth rating; Accuracy: ±0.25%
Attitude Compass Sensor	Range: Roll ±85° \| Pitch ±85° \| Heading 0-360°; Accuracy (RMS): Roll 0.2° \| Pitch 0.2° \| Heading 0.8°; Resolution: 0.1°
Operating Temperature	-5°C - 45°C
Storage Temperature	-40°C - 70°C
Power Supply Interface	10V - 26V
Housing Material	POM
Weight (in Air / in Water)	≤9.8kg / ≤3.6kg
Dimensions (Excluding Top Connector)	Φ300 mm × 150 mm
Available Options	-
